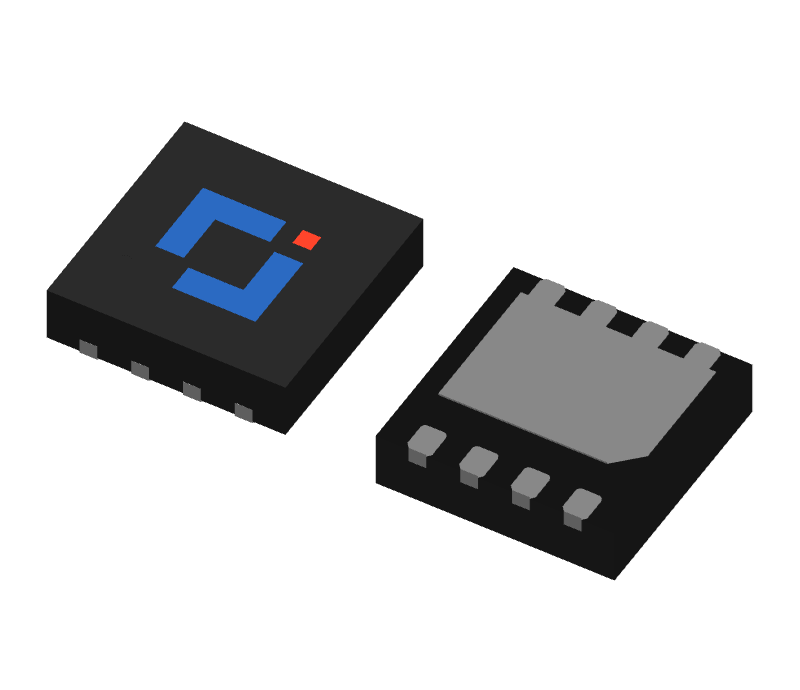

Dual Nch 30V 45A, DFNWB3x3-8L, Trench MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJAE6R8D03A | Active | No | 30 | ±20 | 45 | 1.3~2.5 | 6 | 8 | 8 | 12 | DFNWB3x3-8L |
| Part Number | Package Type | Component Weight(g) | Marking | Packing Info | MSL |
|---|---|---|---|---|---|
| CJAE6R8D03A | DFNWB3x3-8L | 6R8D03A | 5K/Reel;13 inch | MSL3 |
