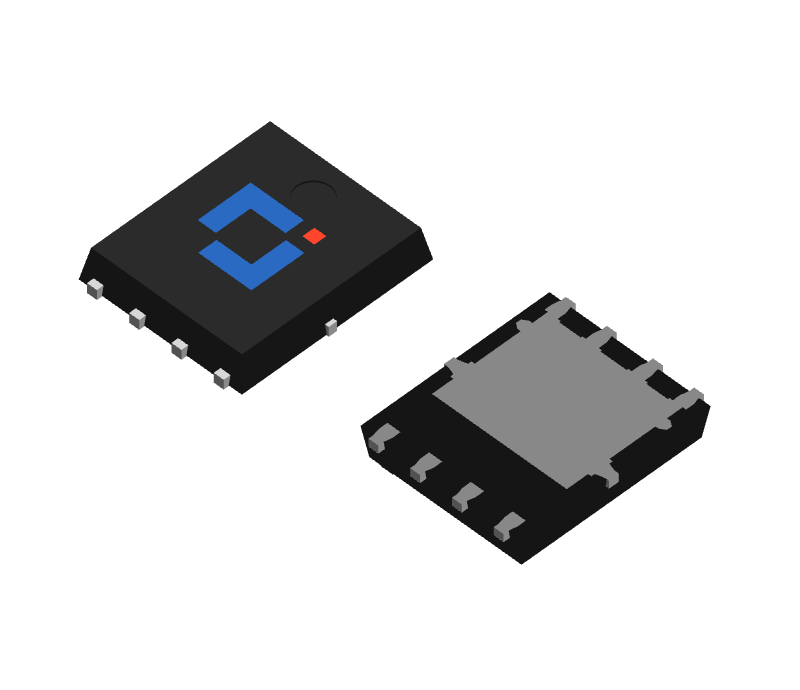

Nch 100V 75A, PDFNWB5x6-8L, SGT Power MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJAC75SN10AL | Active | No | 100 | ±20 | 75 | 1.2～2.5 | 7.5 | 9 | 9.6 | 13 | PDFNWB5x6-8L |
| Part Number | Package Type | Marking | Packing Info | BOX | Carton | MSL |
|---|---|---|---|---|---|---|
| CJAC75SN10AL | PDFNWB5x6-8L | CJAC75SN10AL | 5K/Reel;13 inch | 10K | 50K | MSL1 |
