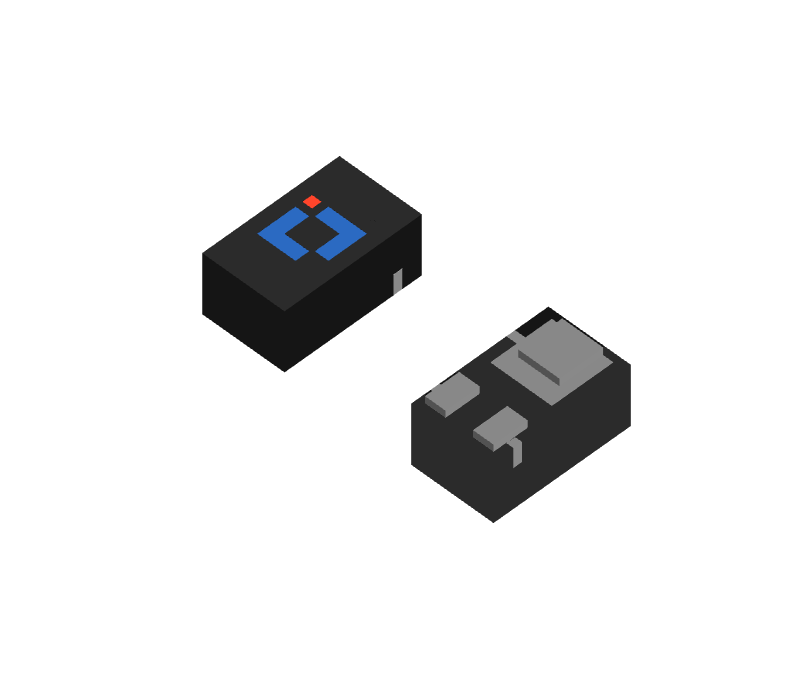

Nch 60V 0.34A, WBFBP-03E, Trench MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJAA7002KL | Active | Yes | 60 | ±20 | 0.34 | 1~2.5 | - | 3500 | - | 4000 | WBFBP-03E |
| Part Number | Package Type | Marking | Packing Info | BOX | Carton | MSL |
|---|---|---|---|---|---|---|
| CJAA7002KL | WBFBP-03E | KL | 10K/Reel;7 inch | 150K | 600K | MSL1 |
